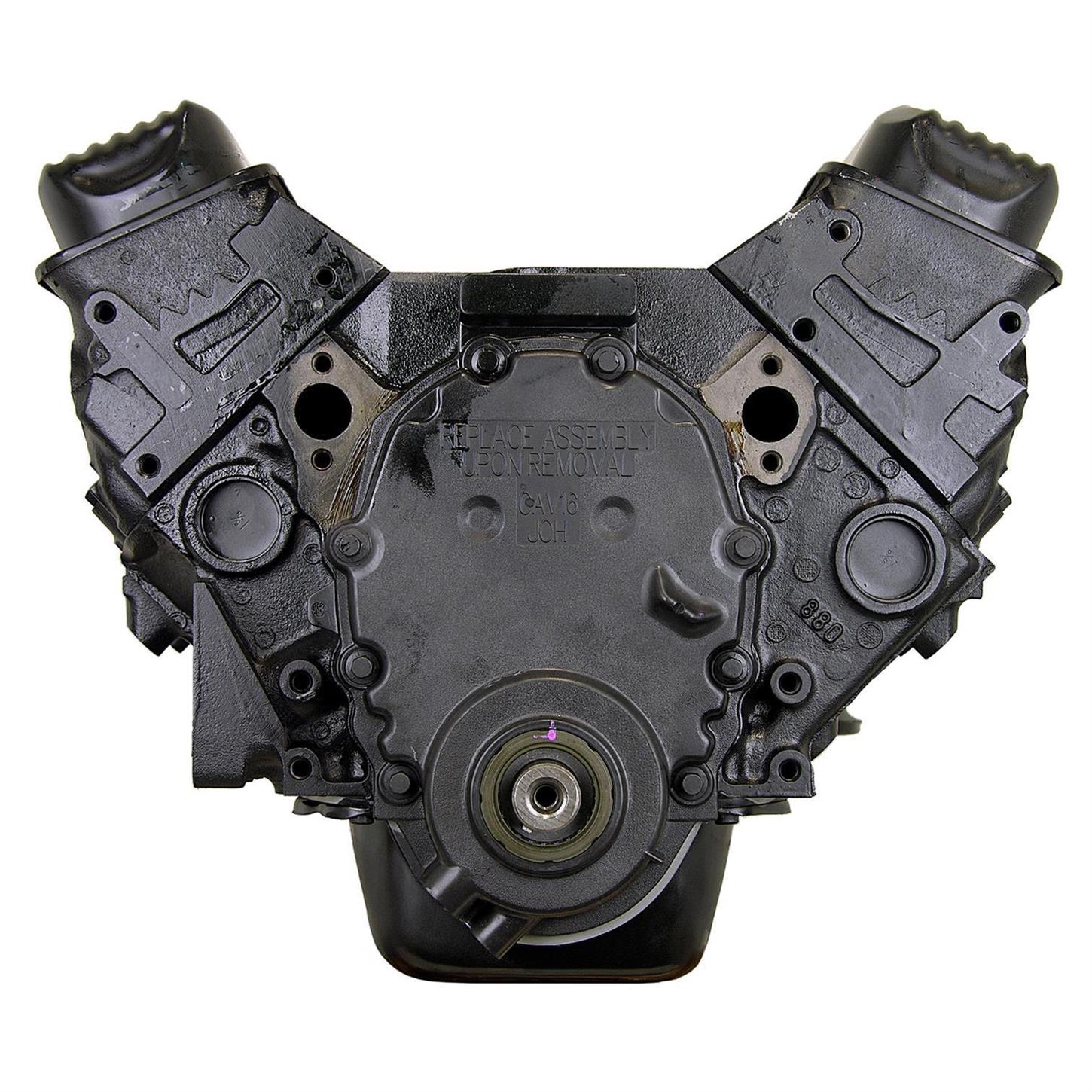

ATK HP105 Chevy 383 Stroker Marine Base Engine 380HP
This engine is ATK’s reman version of the Mercruiser 377CI MPFI engine with a 4.030? bore (383ci). It has the upgraded 4340 Forged Crankshaft and Forged Pistons along with the Mercruiser camshaft installed. It is to be used with the Mercruiser MPFI system, aftermarket EFI or a carburetor conversion. This engine will make 405HP @ the crankshaft and 380HP @ the prop which is how Mercruiser rated their power ratings.
Engine Specifications:
- HP: 380 Prop
- Block: OE roller block 4 bolt main 1pc seal 1996-2000
- Bore/Stroke: 4.040 x 3.750
- Displacement: 383 (Reman Mercruiser 377)
- Crankshaft: Scat 4340 forged external balance rear of crank/internal balance front of the crank
- Rods: Scat 4340 forged I beam with ARP 8740 bolts
- Pistons: Forged 9.1:1` compression
- Rings: Moly
- Camshaft: Hyd. roller
- Cam Specs: 215/220 @50 .457in/.474ex 112LSA
- Timing Chain: Single Roller
- Cylinder Heads: Dart vortec cast iron 67cc/165cc 2.02/1.60
- Rocker Arms: Stamped steel 1.5 rockers
- Oil Pan: Rear sump 5qt
- Oil Pump: Melling
- Flexplate/Flywheel: Pioneer #FRA-159 external balance 168 tooth (with Scat kit)
Disclaimer:
The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.
| KEY SPECS | |
|---|---|
| MFG. Part # | HP105 |
| Brand | ATK Engines |
| Engine Displacement | 6.3 liters |
| Compression Ratio | 9.1:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Cast Iron |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | No |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
