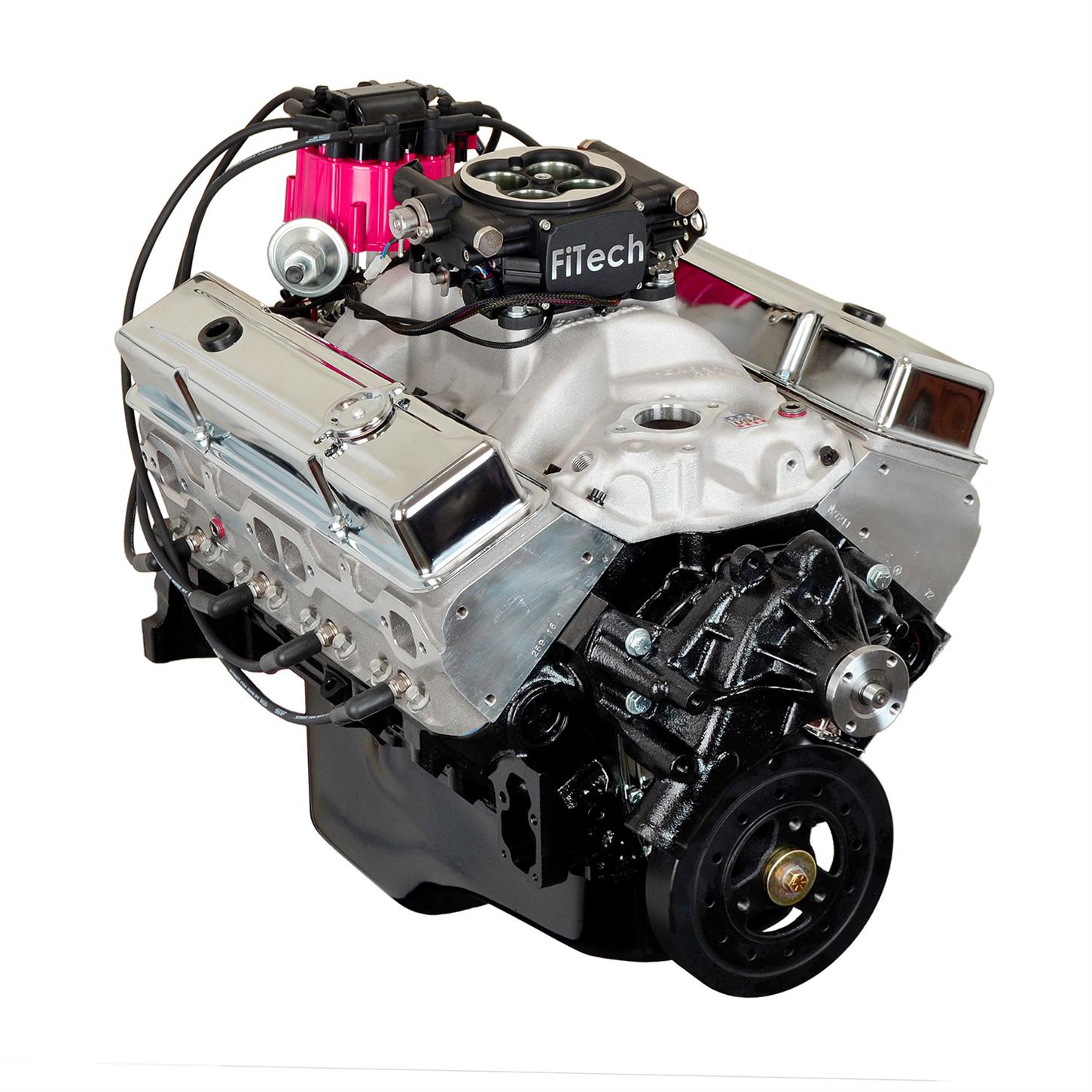

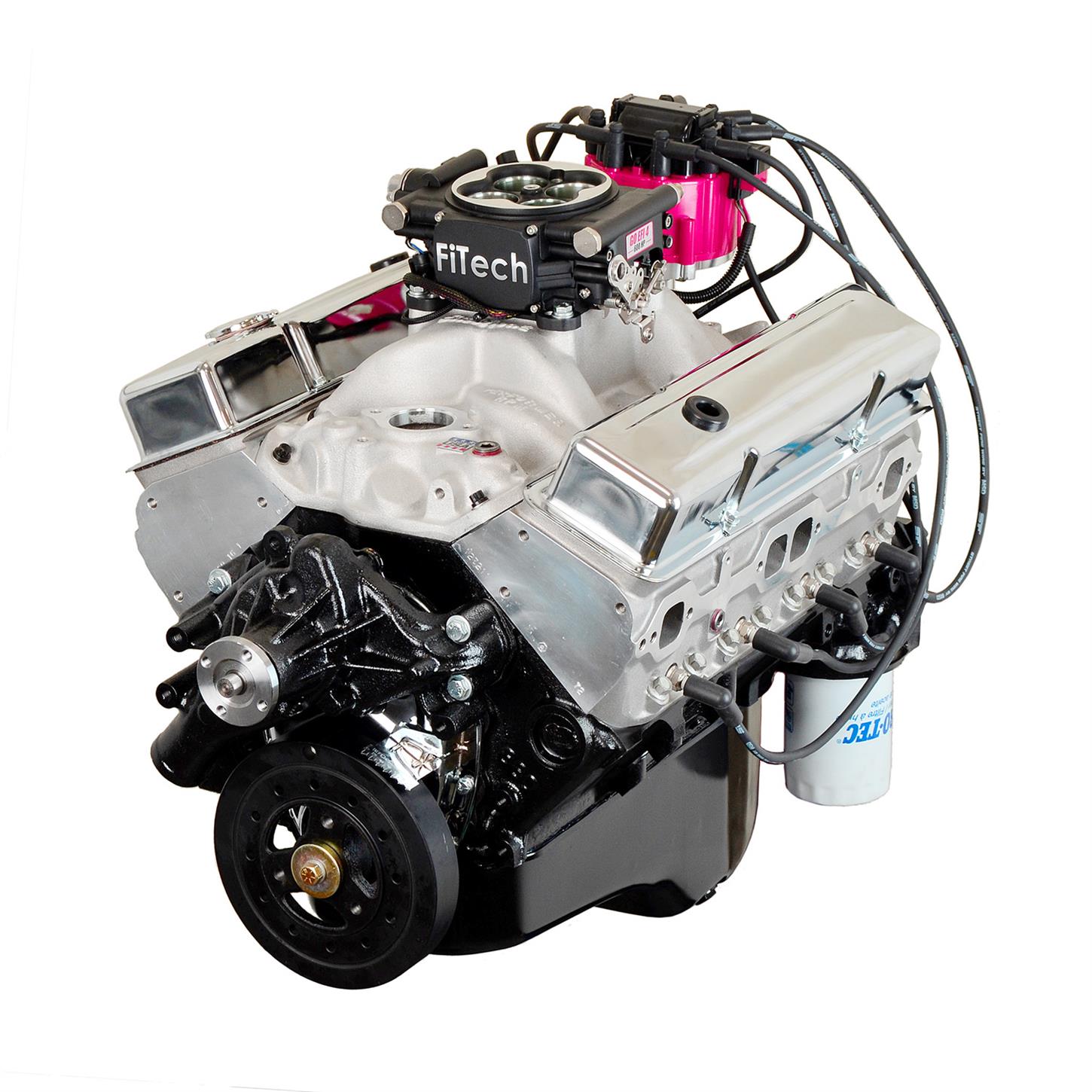

ATK HP36C-EFI Chevy 383 with FITECH EFI 435HP

ATK HP36C-EFI Chevy 383 with FITECH EFI 435HP

Engine Specifications:

• HP: 435
• TQ: 475
• Block: OE roller block 4 bolt main 1pc seal 1996-2000
• Bore/Stroke: 4.040” x 3.750”
• Displacement: 383CI
• Crankshaft: Scat Nodular Iron external balance rear of crank/internal balance front of the crank
• Rods: Scat I Beam 5.7” Rods with ARP 8740 Bolts
• Pistons: Forged 10:1 Compression
• Rings: Moly
• Camshaft: Hyd. Roller
• Cam Specs: 220/224 @50 .528in/.536ex 110LSA
• Timing Chain: Double Roller
• Cylinder Heads: Dart SHP aluminum 72cc/180cc 2.02/1.60
• Rocker Arms: Billet aluminum roller rockers 1.6 ratio
• Oil Pan: Rear sump 5qt (not for Chevelles with steering behind crossmember, some corvettes and 62-67 chevy II’s)
• Oil Pump: Melling STD Volume
• Flexplate/Flywheel: Externally Balanced – Pioneer #FRA-159 (with Scat kit)
• Balancer: Internally Balanced – PowerBond #PB1046-N
• Intake Manifold: Edelbrock performer RPM dual plane #7101
• Distributor: HEI (Iron Gear)
• Water Pump: OE long pump
• EFI System: Fitech Go EFI 4 600HP (throttle body, wire harness and hand held unit included)
• Fuel Pump: Not Provided – must run electric pump or mechanical fuel pump with Fitech Fuel Command Center
• Spark Plugs: Autolite #3923
• Spark Plug Wires: 8mm
  Engine Info:

• Oil: Conventional / Non Synthetic 10W30
• Oil Filter: Wix or K and N
• Timing: 34-36 Degrees
• Spark Plug Gap: .035”
• Firing Order: 18436572
• Octane: 91+
• Stall Converter: 2200-2800
• Exhaust: 1 5/8+ Headers
  Disclaimer:

  The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.
