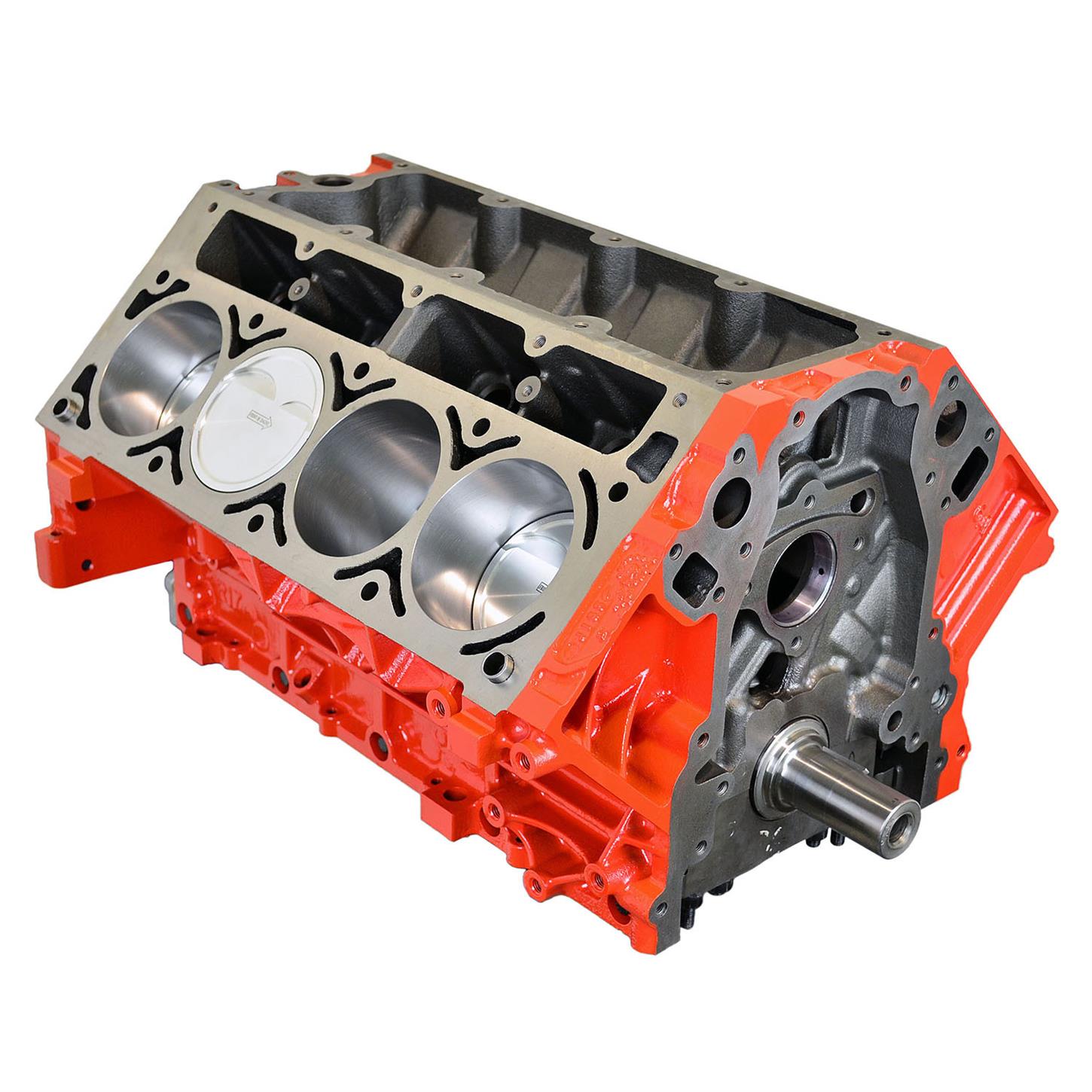

ATK SP36G4 LS 408 Stroker Short Block 29cc Dish Pistons 58 Tooth

ATK SP36G4 LS 408 Stroker Short Block 29cc Dish Pistons 58 Tooth

Engine Specifications:

• Block: Seasoned 6.0L Iron Gen IV
• Bore/Stroke: 4.030” x 4.000”
• Displacement (cu.in): 408
• Crankshaft: Manley 4340 forged 58 tooth reluctor wheel
• Rods: Manley 4340 forged H beam 6.125” ARP 8740 bolts
• Pistons: Manley 2618 forged -29cc dished moly skirt coated
• Rings: Plasmamoly
• Compression Ratios: 64cc = 9.3:1 / 68cc = 9.0:1 / 72cc = 8.7:1 (can vary due to deck height/gasket thickness)
• Camshaft Bearings: Installed and Clocked to OEM Position
• Freeze Plugs: Installed and Sealed
• Oil Galley Plugs: Installed and Sealed
  Recommended Components:

• Balancer- Internal balance
• Flex plate/ Flywheel- Internal balance
• Head Gasket: .051” or per application
• Oil Pump: Melling #10295 with high pressure spring
  Engine Info:

• Oil: 10W40 Non synthetic for first 3000 miles
• Oil Filter: Wix or K and N per application
  Disclaimer:

  The recommended components listed are ATK’s recommendations of parts to be used, applications vary and your build may need something different. Contact ATK for a recommendation if you’re not certain about a component to use. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.
