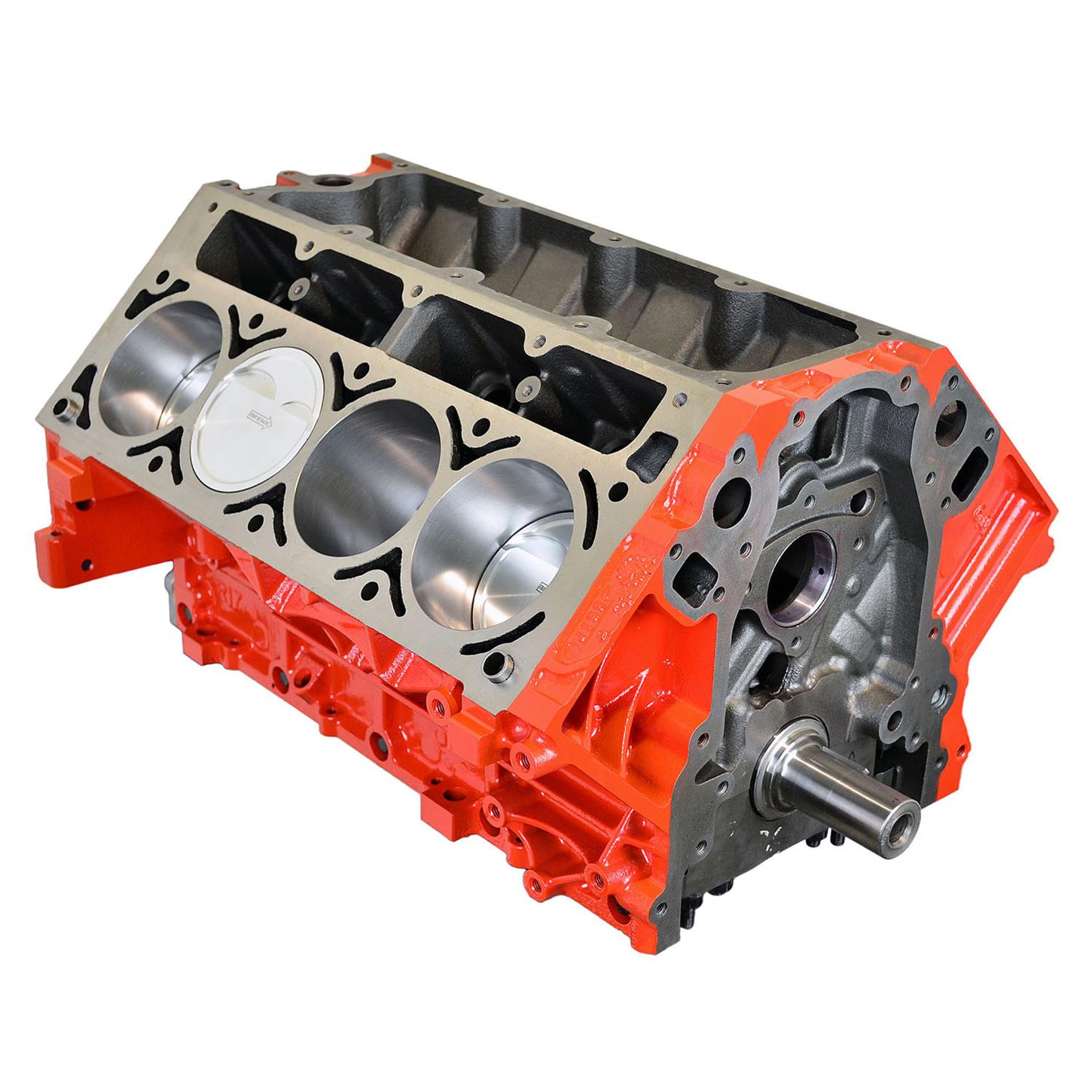

ATK SP38G4B LS 408 Stroker Short Block 18cc Dish Pistons 24 Tooth

ATK SP38G4B LS 408 Stroker Short Block 18cc Dish Pistons 24 Tooth

Engine Specifications:

• Block: Seasoned 6.0L Iron Gen IV with ARP main studs
• Bore/Stroke: 4.030” x 4.000”
• Displacement (cu.in): 408
• Crankshaft: Manley 4340 forged 24 tooth reluctor wheel
• Rods: Manley 4340 forged H beam 6.125” ARP 2000 bolts
• Pistons: Manley 2618 forged -18cc dished moly skirt coated
• Rings: Total Seal CS AP with steel top rings gapped for boost/nitrous
• Compression Ratios: 64cc = 10.2:1 / 68cc = 9.9:1 / 72cc = 9.5:1 (can vary due to deck height/gasket thickness)
• Camshaft Bearings: Installed and Clocked to OEM Position
• Freeze Plugs: Installed and Sealed
• Oil Galley Plugs: Installed and Sealed
  Recommended Components:

• Balancer- Internal balance
• Flex plate/ Flywheel- Internal balance
• Head Gasket: .051” or per application
• Oil Pump: Melling #10295 with high pressure spring
  Engine Info:

• Oil: 10W40 Non synthetic for first 3000 miles
• Oil Filter: Wix or K and N per application
  Notes:

  ATK’s Boost/Nitrous short blocks are meant for engines running these setups. Bearing clearances and ring gap have been taken into consideration for this series of short blocks.


  Disclaimer:

  The recommended components listed are ATK’s recommendations of parts to be used, applications vary and your build may need something different. Contact ATK for a recommendation if you’re not certain about a component to use. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.
