Description

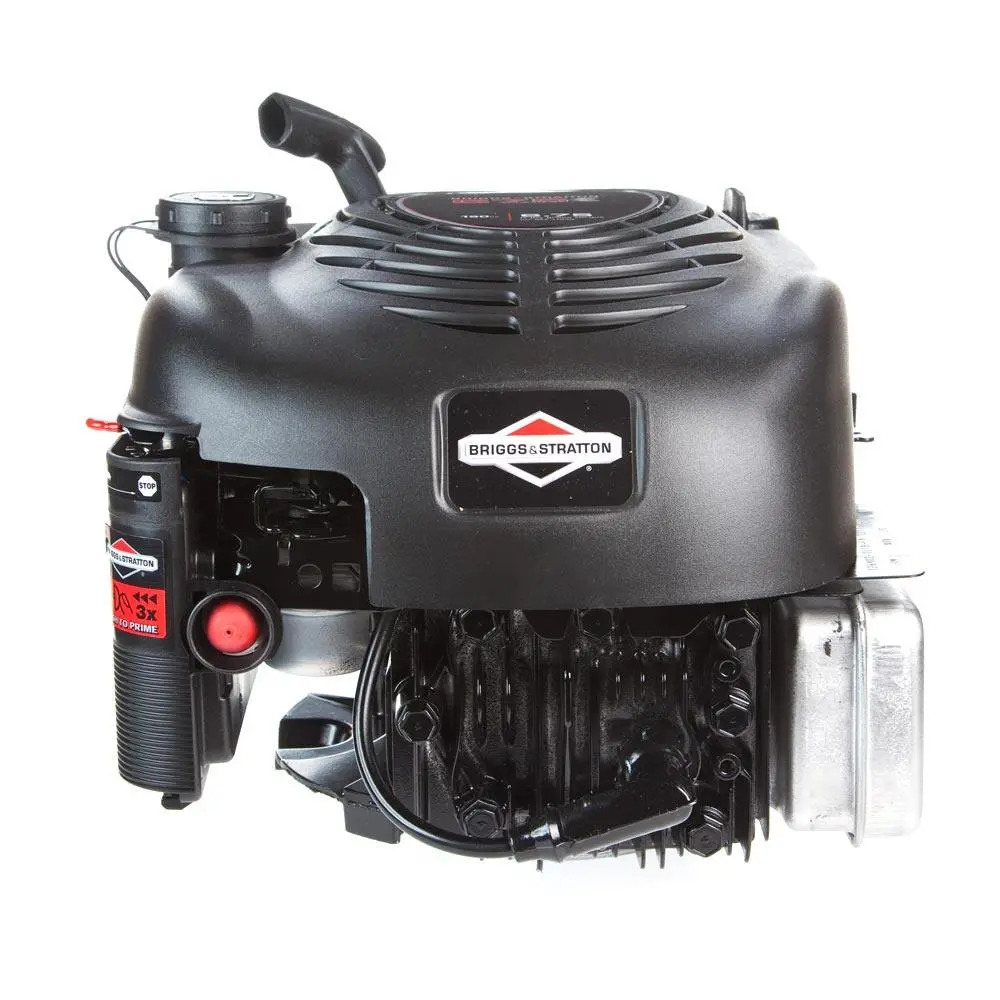

Briggs Stratton 126M02 1018-F1 190 cc 6.75 Gross Torque Vertical Engine with a 7/8 inch x 1-13/16 inch Crankshaft
Key Specifications
BRAND Briggs Stratton
MODEL NUMBER 126M02-1018-F1
REPLACES MODELS 090702-0154-99, 090702-0166-01, 090702-0175-01, 090702-0190-01, 090702-0191-99, 090702-0199-01, 090702-0200-01, 090702-3038-01, 090702-3047-01, 090702-3047-02, 090702-3093-01, 090702-3093-02, 090702-3107-01, 090702-3116-01, 090702-3132-01, 090708-0129-01, 091708-0120-01, 100708-0158-01, 100708-3117-01, 100708-3121-01, 100708-3121-02, 100708-3129-01, 110702-0207-01, 110702-0207-99, 110702-0224-01, 110702-3066-01, 110702-3066-02, 110702-3087-01, 112702-3060-01, 112702-3065-01, 112702-3065-02, 121702-0178-01, 121702-0182-01, 121702-0265-01, 121702-0275-01, 121702-3124-01, 121702-3142-01, 121702-7018-01, 121K02-0110-E1, 121K02-0291-E1, 121K02-0306-E1, 122702-0159-01, 122702-0163-01, 122702-0183-01, 122702-0194-01, 122702-3123-01, 122702-3135-01, 122702-3138-01, 122702-3140-01, 122702-3162-01, 122702-3327-01, 122702-3328-01, 122702-4006-01, 122702-7001-99, 122702-7018-01, 122802-3412-01, 122K02-0018-E1, 122K02-0518-E1, 123702-0149-01, 123702-0152-01, 123702-0155-01, 123702-0160-01, 123K02-0018-E1, 123K02-0518-E1, 124702-0126-01, 124702-0222-99, 124702-0674-01, 124702-0682-99, 124702-3151-01, 124702-3153-01, 124702-3180-01, 124702-3190-01, 124702-3250-01, 124702-4008-99, 124702-7018-01, 124802-3411-01, 124802-3414-01, 124802-3415-01, 126702-0117-01, 126702-3122-99, 126802-0425-01, 126802-0428-01, 126802-3414-01, 126802-3417-01, 126802-3422-01, 12E702-2618-F1, 126L02-1018-F1, 126T02-0018-B1, 126T02-0018-E1, 127702-0660-01, 127702-0672-01, 127702-0674-01, 127702-4711-B1, 127702-4711-E1, 127802-0820-01, 128702-0505-01, 128702-0672-01, 128702-1772-B1, 128702-1772-E1, 128802-1132-01, 128802-1193-01, 128802-1902-B1, 128802-1914-B1, 128802-1994-E1, 128802-2008-B1, 128802-2008-E1, 128802-2105-01, 129802-1418-01, 12F702-2618-01, 12F702-2718-E1, 12F802-2918-B1, 12F802-2918-E1, 12J802-2818-01, 12J802-2918-A1, 12J802-2918-B1, 12J802-2918-E1, 126L02-1018, 126L02-1018-F1
WARRANTY 2 Year Consumer / 90 Day Commercial
SHIPPING WEIGHT 28
DISPLACEMENT 190cc
STARTER TYPE Recoil
CRANKSHAFT ORIENTATION Vertical
CRANKSHAFT TYPE Straight
FUEL SYSTEM Gasoline
GEAR REDUCTION No
CRANKSHAFT DIMENSIONS 7/8″ x 1-13/16″
CRANKSHAFT LENGTH 1-13/16″
CRANKSHAFT END TAPPED SIZE 3/8 – 24
CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise
CYLINDERS 1
CYLINDER BORE TYPE Aluminum Alloy
AIR CLEANER TYPE Dual Element
FUEL TANK Yes
FUEL PUMP No
OIL COOLER No
OIL CAPACITY 20
LOW OIL ALERT No
LOW OIL SHUTDOWN No
IGNITION SYSTEM Electronic
CARBURETOR TYPE Float
CHOKE CONTROL None
MAX RPM 3100
CHARGING SYSTEM None
BOLT CIRCLE 8″
FLYWHEEL Light
NOTES Engine Notes:
PTO HEIGHT N/A
