Description

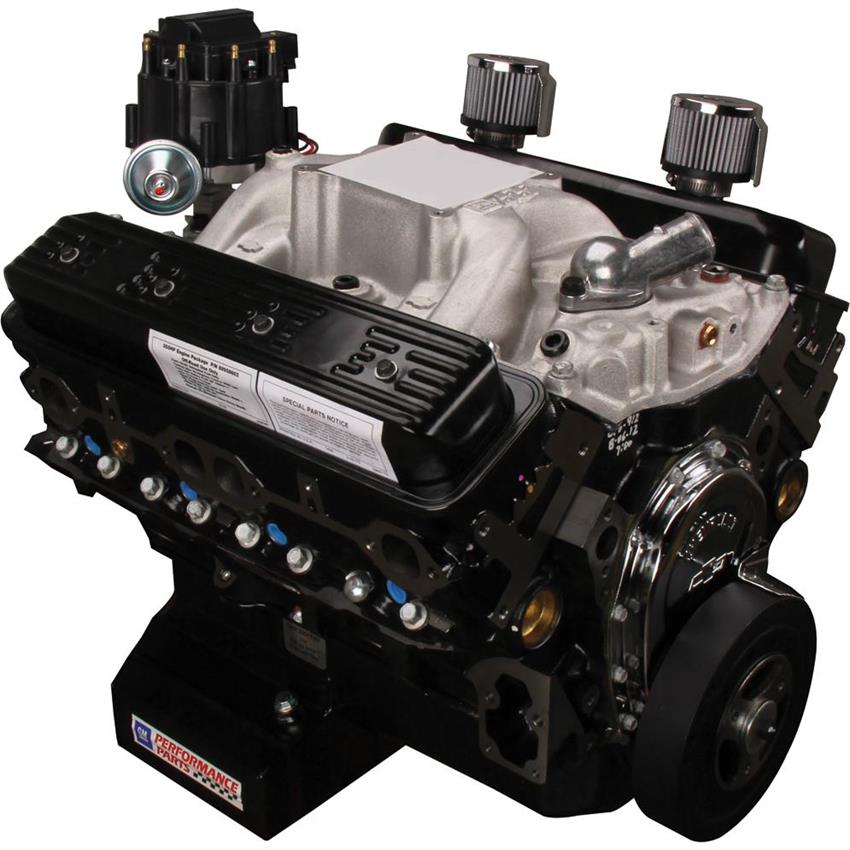

Sealed CT350 Chevy 602 Crate Engine, Dyno Tested, Race Ready
The Chevrolet Performance CT350 circle track crate engine delivers competitive and durable power at an economical price, and now
Speedway Motors Racing Engines
is offering them as a
dyno-verified package
that is ready to race! Designed for circle track’s weekend warriors, this bullet-proof 350-horsepower, 350-cubic-inch factory-sealed racing crate engine (often referred to as the “602 crate”) is a tough combination of power and reliability – and it fits almost any racing budget.
is offering them as a
dyno-verified package
that is ready to race! Designed for circle track’s weekend warriors, this bullet-proof 350-horsepower, 350-cubic-inch factory-sealed racing crate engine (often referred to as the “602 crate”) is a tough combination of power and reliability – and it fits almost any racing budget.
Based on GM Performance Parts’ popular 350 HO engine, including a brand-new, four-bolt-main block, 9:1 hypereutectic pistons, cast iron crankshaft and GM iron Vortec cylinder heads, the 350/350 Factory Stock version features a high-rise dual-plane intake manifold, 8-quart single kick-out circle track oil pan, valve cover kit with breather tube and breather, and special “kool nut” rocker arm nut design. The 350 HO’s unique dual-pattern cam is included, too. It’s based on the one found in 1965-67 Corvette 327 engines, but with more lift and duration to clear the engine exhaust quickly and move in more air – providing excellent mid- and high-range power, where you need it on the track.
The 602 crate engine is delivered complete from the oil pan to the intake manifold – including an HEI distributor – the 350/350 CT350 racing crate engine has the proven parts and horsepower to enable a competitive racecar. Getting it into the winner’s circle, however, is your job!

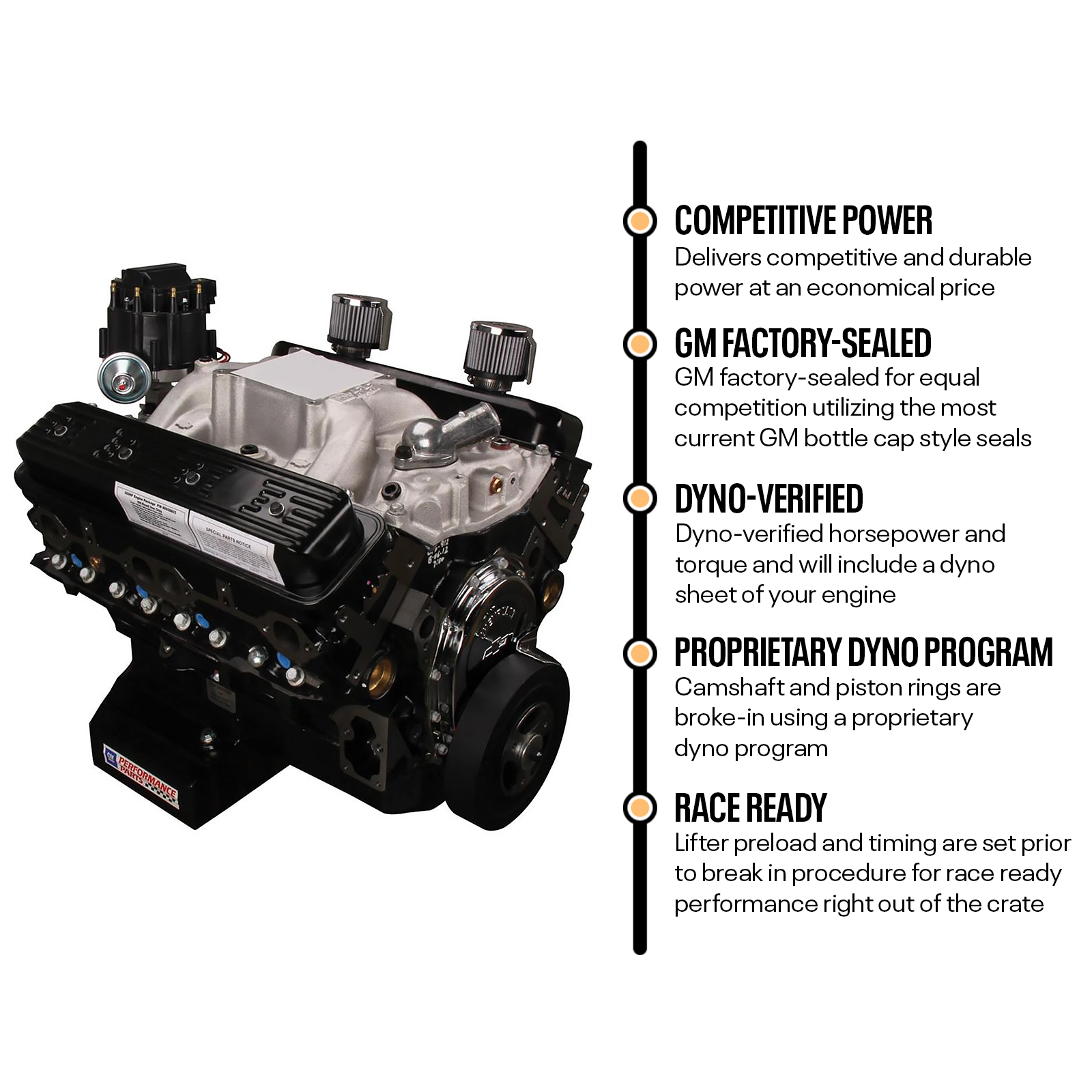

Dyno-verified
horsepower and torque- Camshaft and piston rings are broken-in using a
proprietary dyno program
- Lash and timing are
individually tuned
- Engine is
ready to race
- Factory-sealed for equal competition
- Popular in Hobby Stock, Factory Stock, Street Stock, Sport Modified, and Truck classes*
- 350 hp @ 5000 RPM
- 390 ft lbs. Torque @ 3800 RPM
- Forged steel Crankshaft
- CNC Machined Block
- Affordable Horsepower – popular in Factory Stock, Sport Modified, and Truck
- Comes Complete Intake to Pan
- Includes an HEI Distributor
- It does not include a flywheel or water pump
- 4 bolt block
- 9.1:1 Compression Ration with Iron Vortec Heads
- 8 1/2″ Deep oil pan holds 8 quarts including the filter
- Dual-plane, High-rise, aluminum intake
- Engine weighs 434 lbs as delivered
| KEY SPECS | |
|---|---|
| MFG. Part # | 19433602 |
| Brand | Speedway Motors Racing Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 350 cu. in. |
| Horsepower | 350 horsepower |
| Compression Ratio | 9.1:1 |
| Torque | 390 ft./lbs. |
| Camshaft Type | Hydraulic Flat Tappet |
| Cylinder Head Material | Cast Iron |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Forged Steel |
| Camshaft Duration (.050 in) | 212° intake / 222° exhaust |
| Camshaft Lift (in) | .435 intake / .460 exhaust |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | Powdered Metal |
| Valve Covers Included | Yes |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
