Description
The Toyota RAV4 1AZ-FE 2.0L 4×4 automatic refers primarily to the petrol RAV4 configurations using Toyota’s 1AZ-FE 2.0-liter VVT-i engine, paired with a 4-speed electronically controlled automatic transmission and four-wheel drive. The exact specifications vary by model year and market, so the year is important when buying a replacement engine or gearbox. Toyota’s 2002 Canadian specification, for example, lists the 1AZ-FE at 1,998 cc, 148 hp and 192 Nm, with a 4-speed automatic and full-time 4WD.

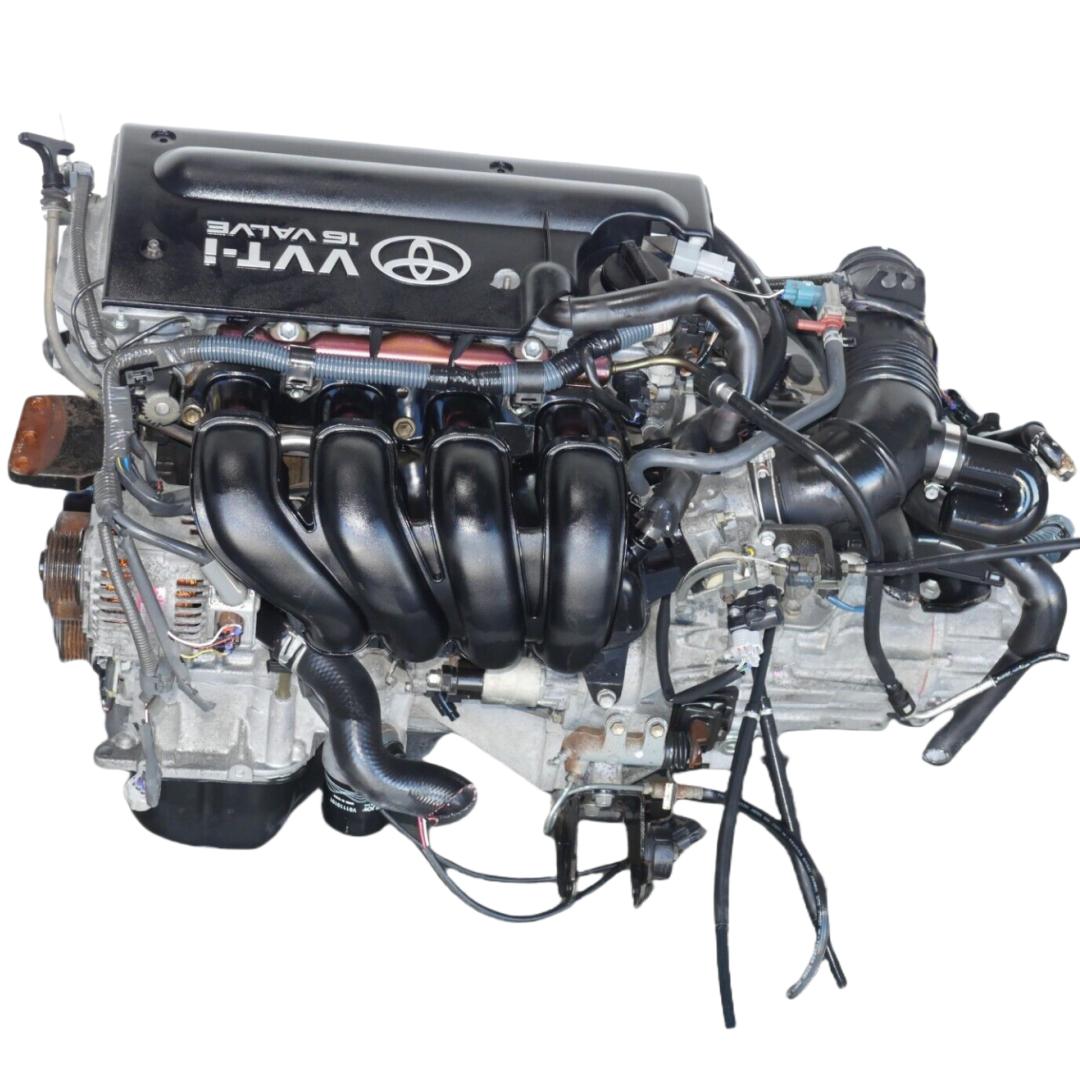

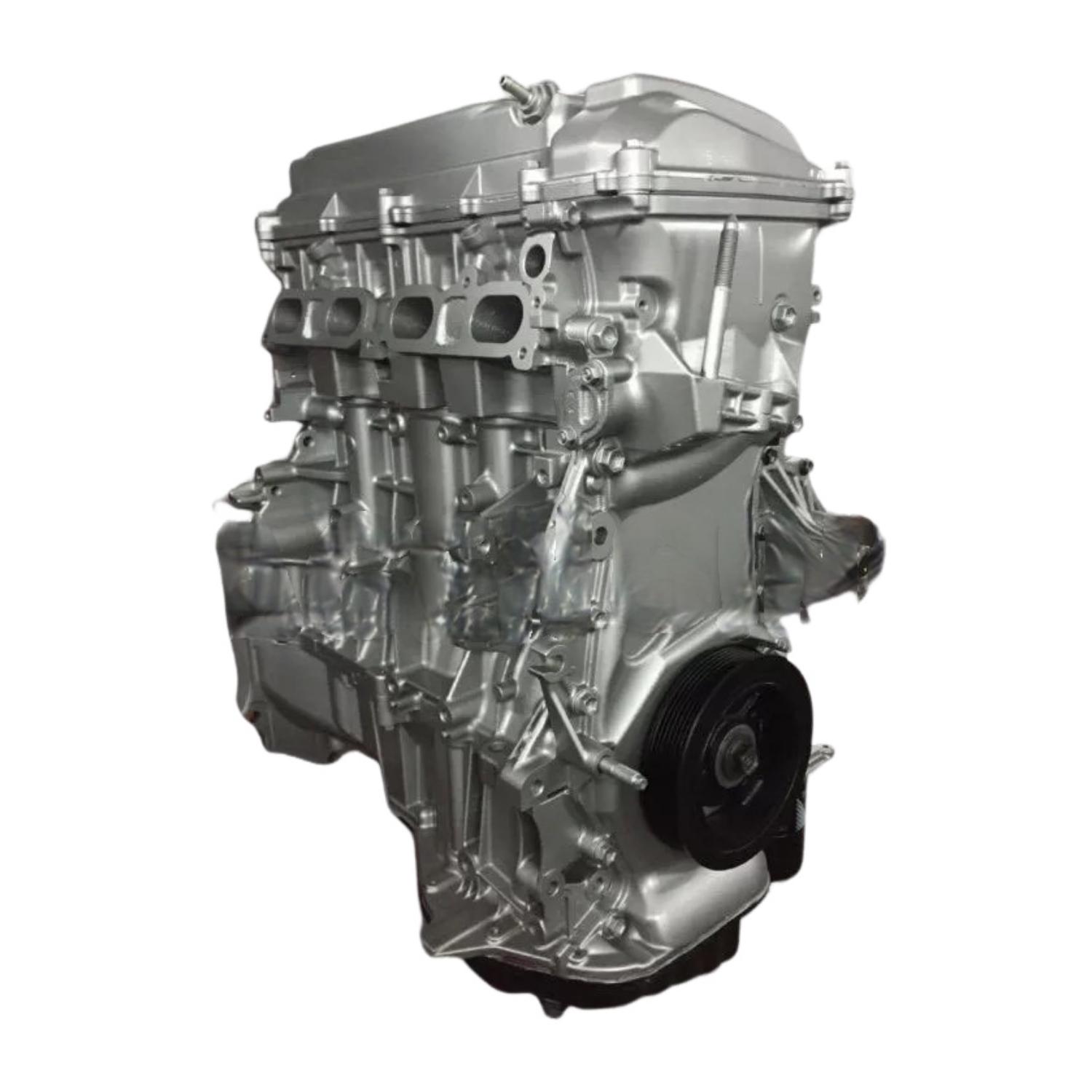

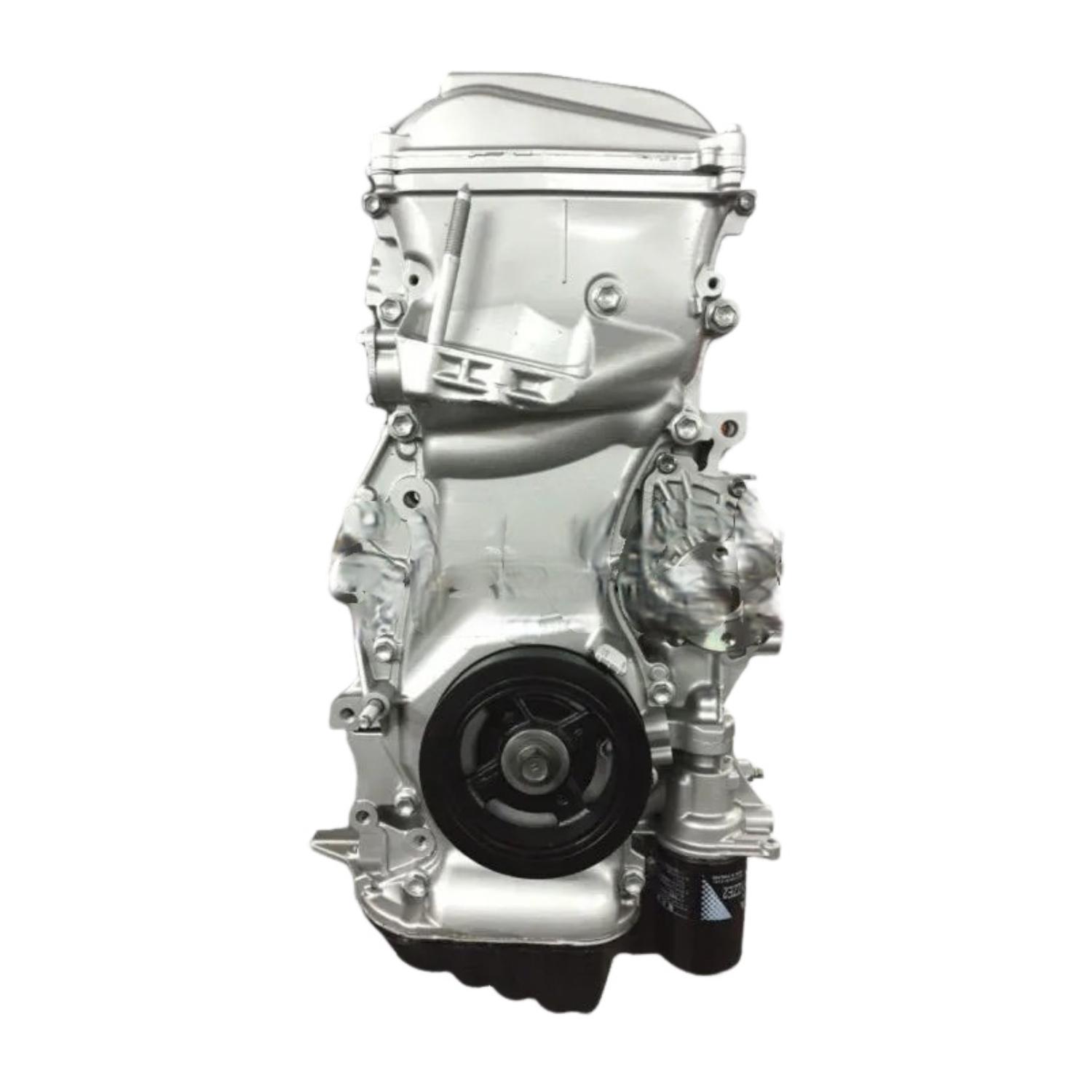

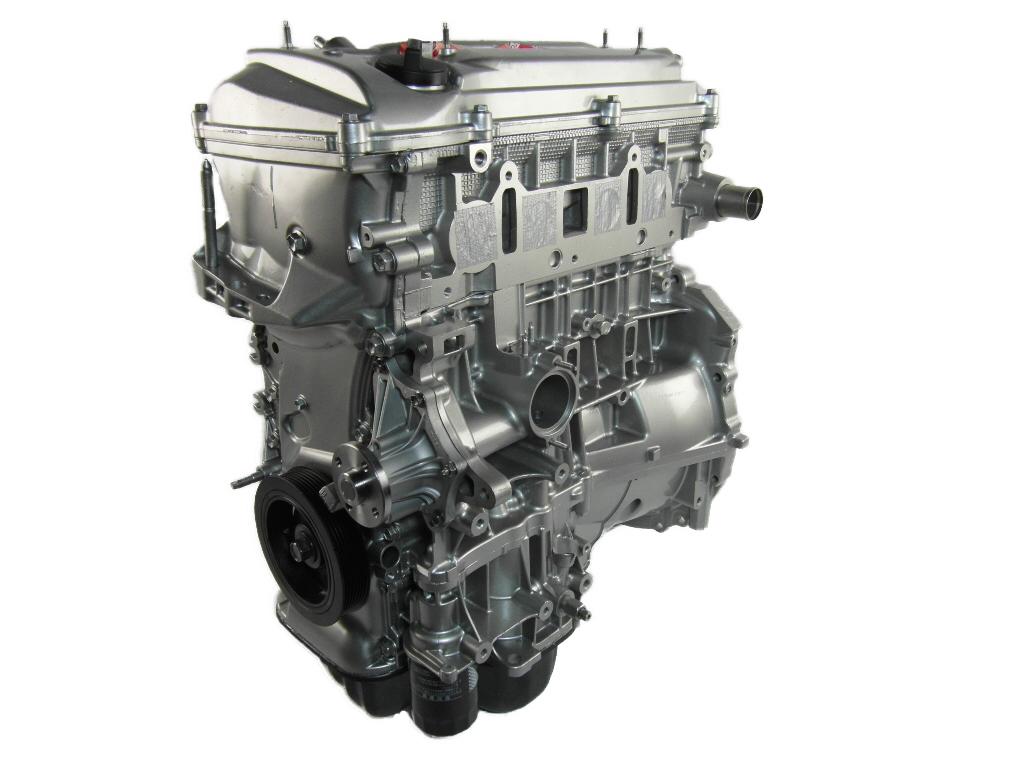

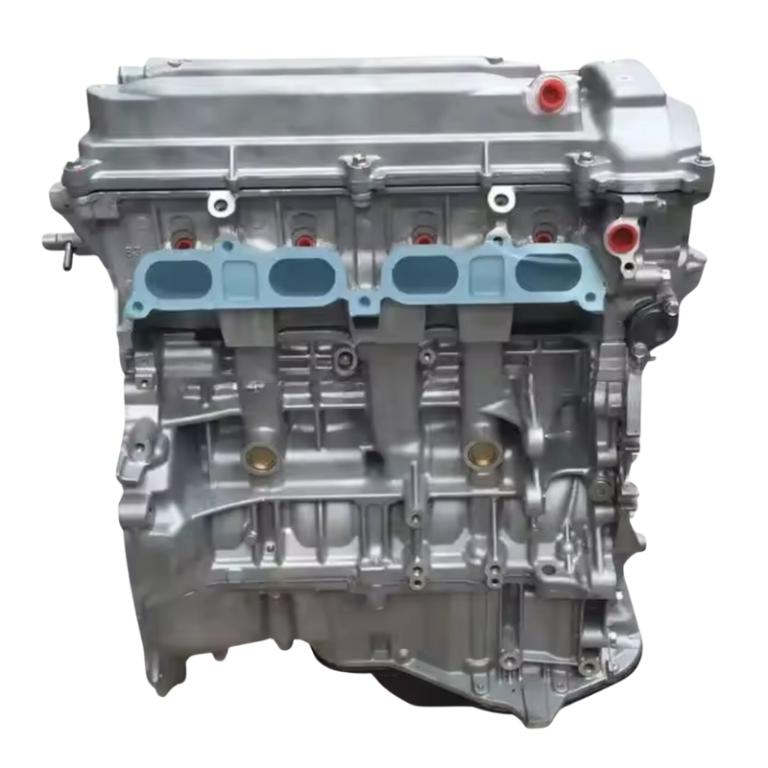

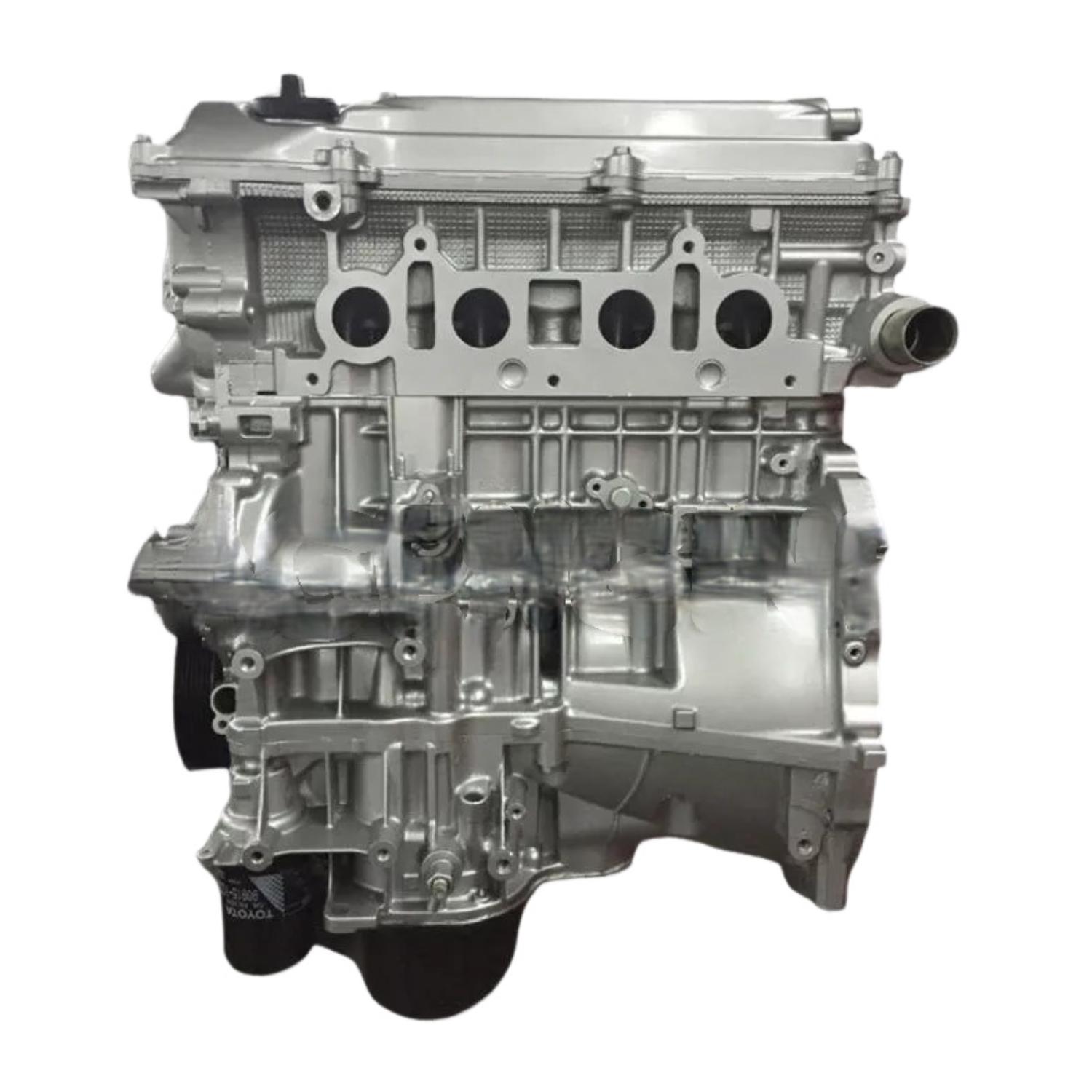

1AZ-FE is Toyota’s naturally aspirated, inline-four-cylinder 2.0-liter petrol engine from the AZ engine family. It features DOHC, 16 valves, VVT-i and sequential multi-port electronic fuel injection. The engine has an 86.0 mm × 86.0 mm bore and stroke and a 1,998 cc displacement.

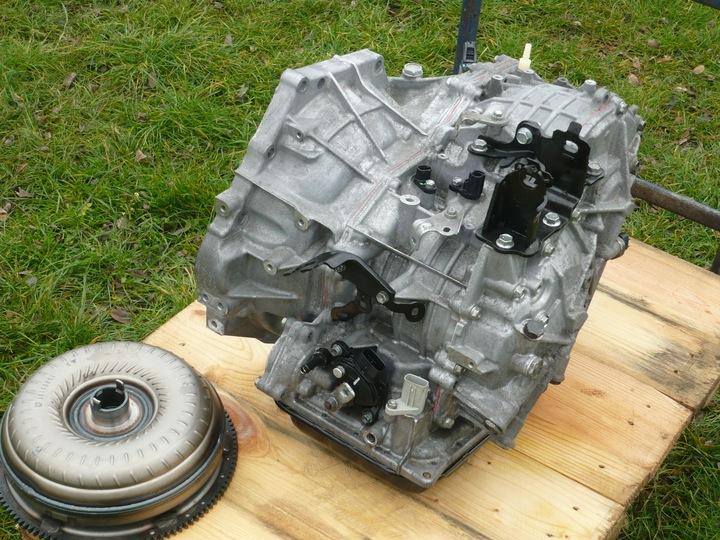

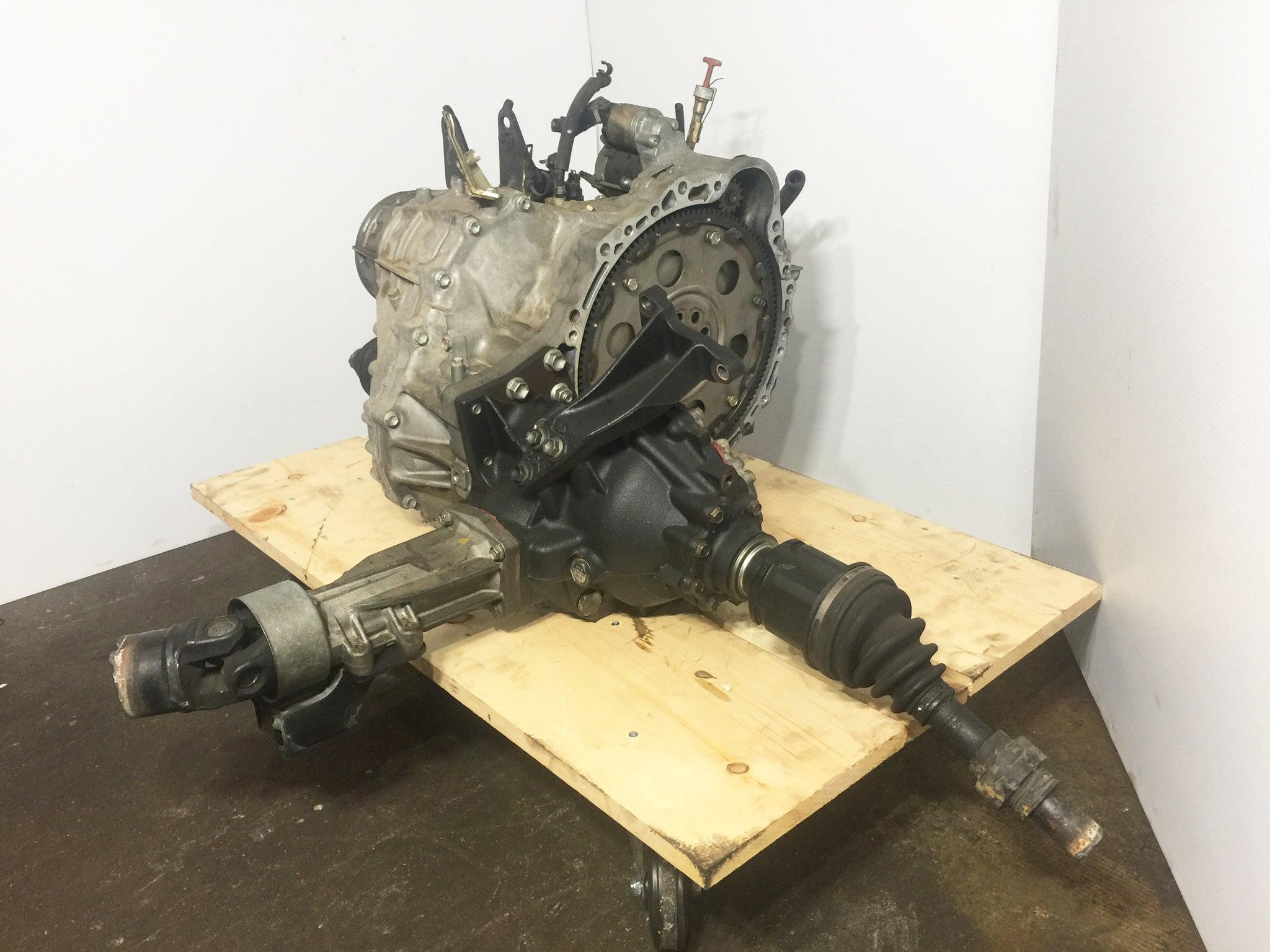

The 4×4/4WD version drives all four wheels, while the automatic version uses a 4-speed electronically controlled automatic transmission with a lock-up torque converter in the early RAV4 application.
The 4×4/4WD version drives all four wheels, while the automatic version uses a 4-speed electronically controlled automatic transmission with a lock-up torque converter in the early RAV4 application.
The 1AZ-FE was used beyond the second-generation RAV4. Toyota’s later RAV4 specifications show the 1AZ-FE continuing into the third-generation RAV4, with some versions producing around 112 kW and 194 Nm. The transmission and 4WD system can also differ from the earlier vehicle.
