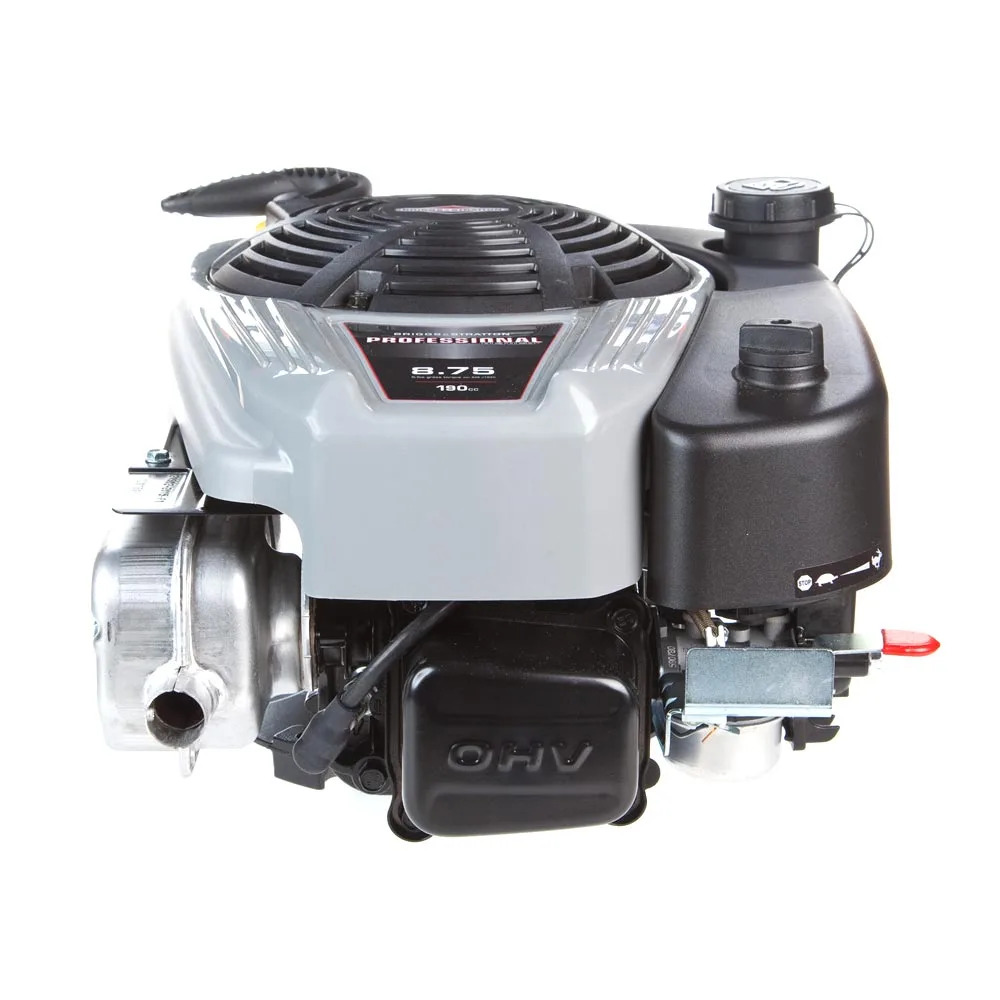

Briggs Stratton Vertical Engine 121S02 2015 F1

Description

Briggs Stratton 121S02-2015-F1 190 cc 8.75 Gross Torque OHV Vertical Engine with a 7/8 inch x 3-5/32 inch Crankshaft
Briggs Stratton Vertical Engine 121S02-2015-F1 Key Specifications
BRAND Briggs Stratton
MODEL NUMBER 121S02-2015-F1
REPLACES MODELS 110602-0015-E1, 110602-0100-E1, 110602-0102-E1, 110602-0112-E1, 110602-0118-E1, 110602-0131-E1, 110602-0134-E1, 110602-0135-E1, 110602-0136-E1, 111602-0101-E1, 111602-0139-E1, 111602-0145-E1, 111602-0146-E1, 111602-0150-E1, 111602-0151-E1, 111602-0156-E1, 111602-0157-E1, 111602-0162-E1, 111602-0169-E1, 111602-0174-E1, 111602-0175-E1, 11A602-0111-E1, 11A602-0113-E1, 11A602-0115-E1, 11A602-0125-E1, 11A602-0147-E1, 11A602-0150-E1, 11A602-0151-E1, 11A602-0152-E1, 11A602-0169-E1, 11A602-0170-E1, 120602-0120-E1, 120602-0131-E1, 120602-0138-E1, 120602-0146-E1, 120602-0146-E2, 120602-0153-E1, 120602-0164-E1, 120602-0195-E1, 120602-0200-E1, 121602-0015-A1, 121602-0015-B1, 121602-0015-E1, 121602-0019-E1, 121602-0118-E1, 121602-0121-E1, 121602-0135-01, 121602-0154-01, 121602-0155-E1, 121602-0155-E2, 121602-0165-E1, 121602-0168-A1, 121602-0173-E1, 121602-0175-E1, 121602-0182-E1, 121602-0184-E1, 121602-0190-E1, 121602-0190-E2, 121602-0215-E1, 121602-0219-E1, 121602-0220-E1, 121602-0221-B1, 121602-0221-E1, 121602-0223-E1, 121602-0232-E1, 121602-0245-E1, 121602-0250-E1, 121602-0252-E1, 121602-0256-E1, 121602-0258-E1, 121602-0263-E1, 121602-0265-E1, 121602-0272-B1, 121602-0272-E1, 121602-0279-E1, 121602-0279-E2, 121602-0280-E1, 121602-0281-E1, 121602-0286-E1, 121602-0291-E1, 121602-0297-E1, 121602-0306-B1, 121602-0306-E1, 121602-0308-E1, 121602-0321-E1, 121602-0332-E1, 121602-0338-E1, 121602-0339-E1, 121602-0344-E1, 121602-0346-B1, 121602-0346-E1, 121602-0359-B1, 121602-0359-E1, 121602-0360-E1, 121602-0385-B1, 121602-0385-E1, 121602-0388-B1, 121602-0388-E1, 121602-0390-B1, 121602-0390-E1, 121602-0515-B1, 121602-0515-E1, 121S02-0015, 121S02-0015-F1
WARRANTY 2 Year Consumer / 90 Day Commercial
SHIPPING WEIGHT 30
DISPLACEMENT 190cc
STARTER TYPE Recoil
CRANKSHAFT ORIENTATION Vertical
CRANKSHAFT TYPE Straight
FUEL SYSTEM Gasoline
GEAR REDUCTION No
CRANKSHAFT DIMENSIONS 7/8″ x 3-5/32″
CRANKSHAFT LENGTH 3-5/32″
CRANKSHAFT END TAPPED SIZE 3/8 – 24
CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise
BEARING TYPE Plain PTO
CYLINDERS 1
CYLINDER BORE TYPE Aluminum Alloy
AIR CLEANER TYPE Dual Element
FUEL TANK Yes
FUEL PUMP No
OIL COOLER No
OIL CAPACITY 20
LOW OIL ALERT No
LOW OIL SHUTDOWN No
IGNITION SYSTEM Electronic
CARBURETOR TYPE Float
CHOKE CONTROL Ready Start
MAX RPM 3100
CHARGING SYSTEM None
BOLT CIRCLE 8″
FLYWHEEL Light
NOTES Engine Notes:
PTO HEIGHT N/A
