Description
The Toyota 3RZ-FE is a 2.7-liter naturally aspirated gasoline inline-4 engine from Toyota’s RZ engine family. It was produced primarily from 1994 to 2004 and became well known for its durability, simple construction, strong low-speed torque and use in Toyota pickups, SUVs, vans and commercial vehicles.
| Specification | 2RZ-FE | 3RZ-FE |
|---|---|---|
| Displacement | 2,438 cc | 2,693 cc |
| Bore | 95 mm | 95 mm |
| Stroke | 86 mm | 95 mm |
| Cylinders | 4 | 4 |
| Valves | 16 | 16 |
| DOHC | Yes | Yes |
| Fuel | EFI | EFI |
| Compression | ~9.5:1 | 9.5:1 |
| Balance shafts | No/varies | Twin |
| Timing | Chain/gear | Chain/gear |
| Torque | Lower | Higher |
| Main advantage | Economy/simplicity | More displacement & torque |
| Specification | 2RZ-FE | 3RZ-FE |
|---|---|---|
| Displacement | 2,438 cc | 2,693 cc |
| Bore | 95 mm | 95 mm |
| Stroke | 86 mm | 95 mm |
| Cylinders | 4 | 4 |
| Valves | 16 | 16 |
| DOHC | Yes | Yes |
| Fuel | EFI | EFI |
| Compression | ~9.5:1 | 9.5:1 |
| Balance shafts | No/varies | Twin |
| Timing | Chain/gear | Chain/gear |
| Torque | Lower | Higher |
| Main advantage | Economy/simplicity | More displacement & torque |

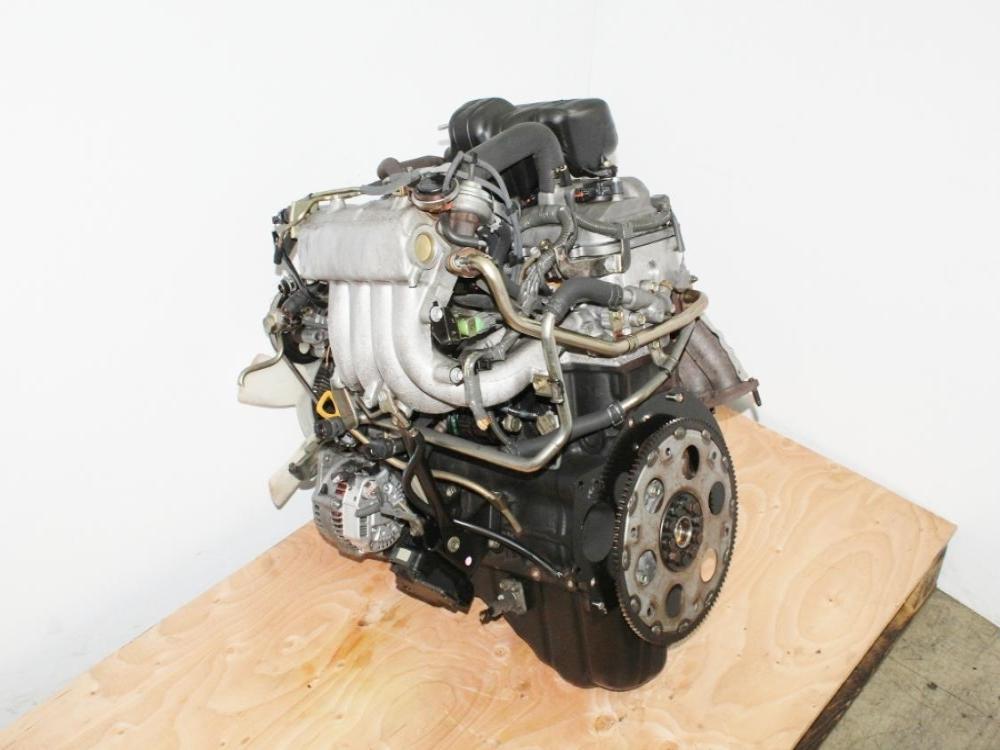

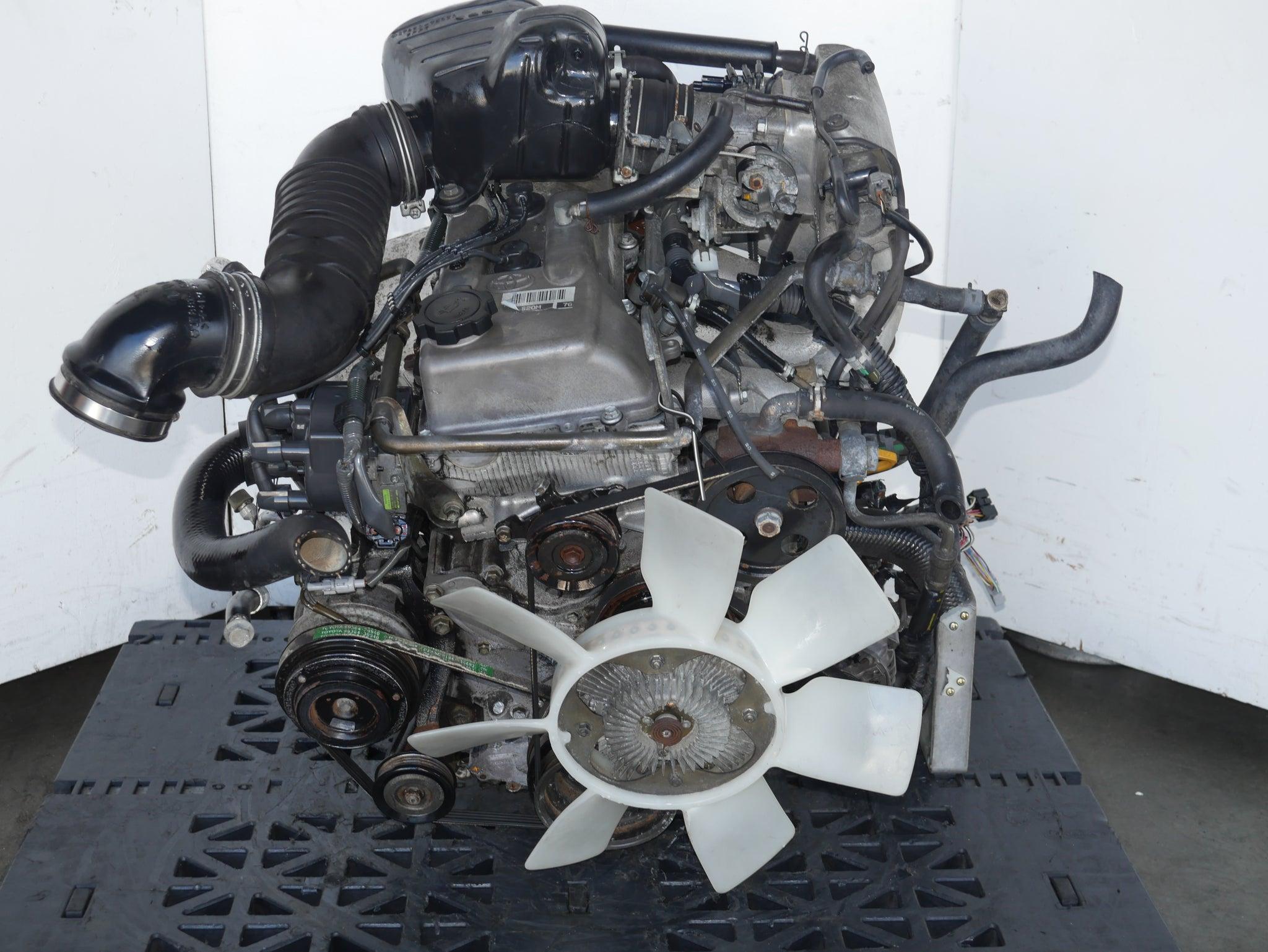

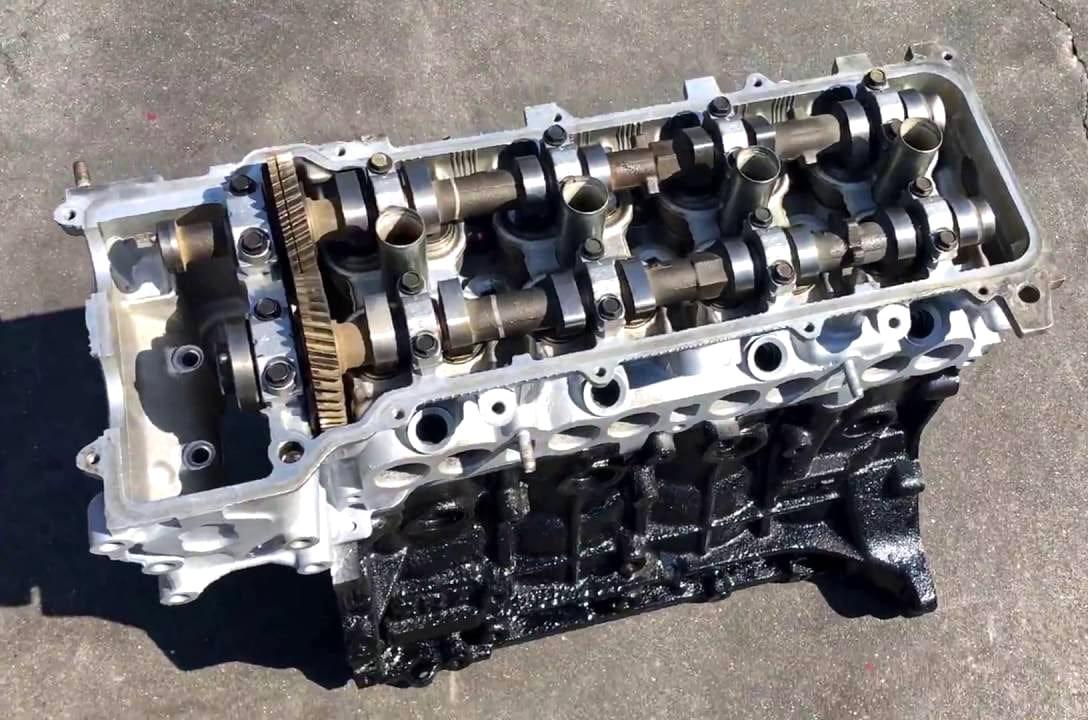

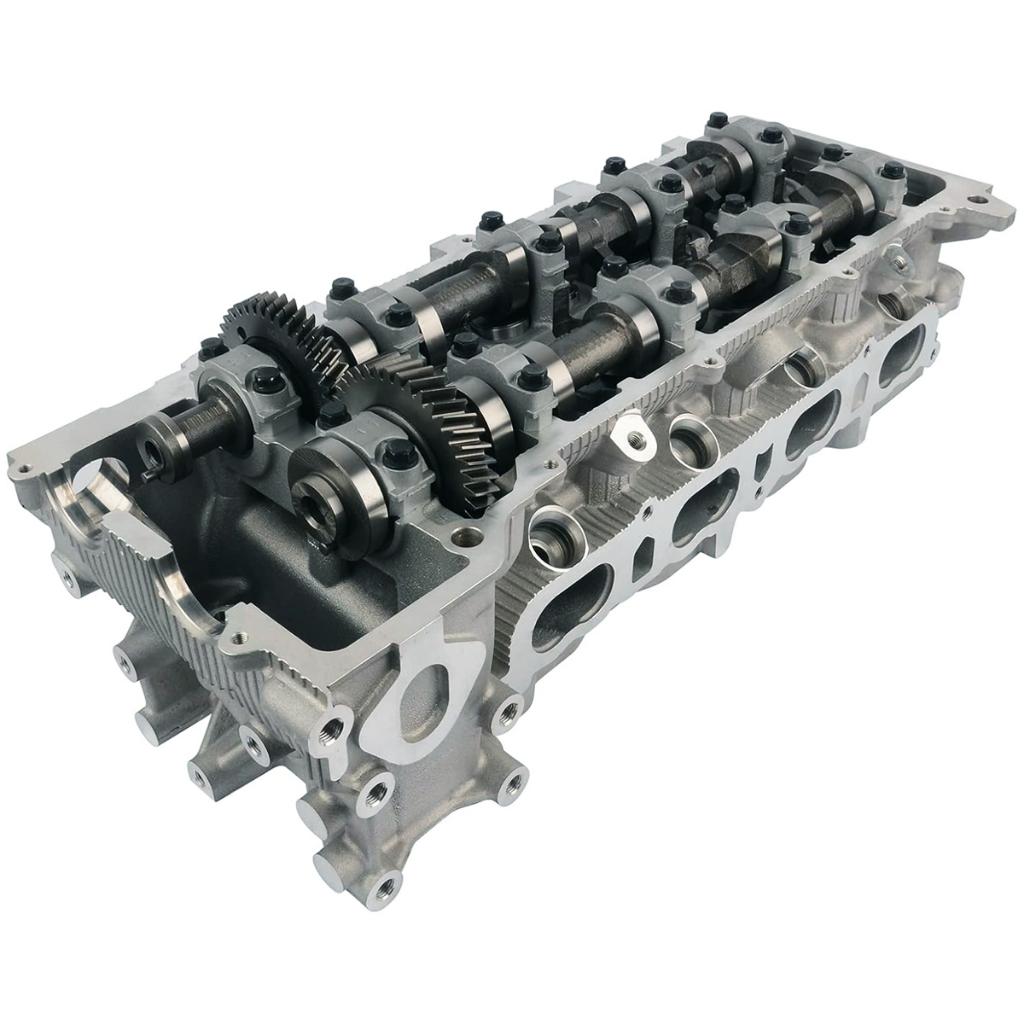

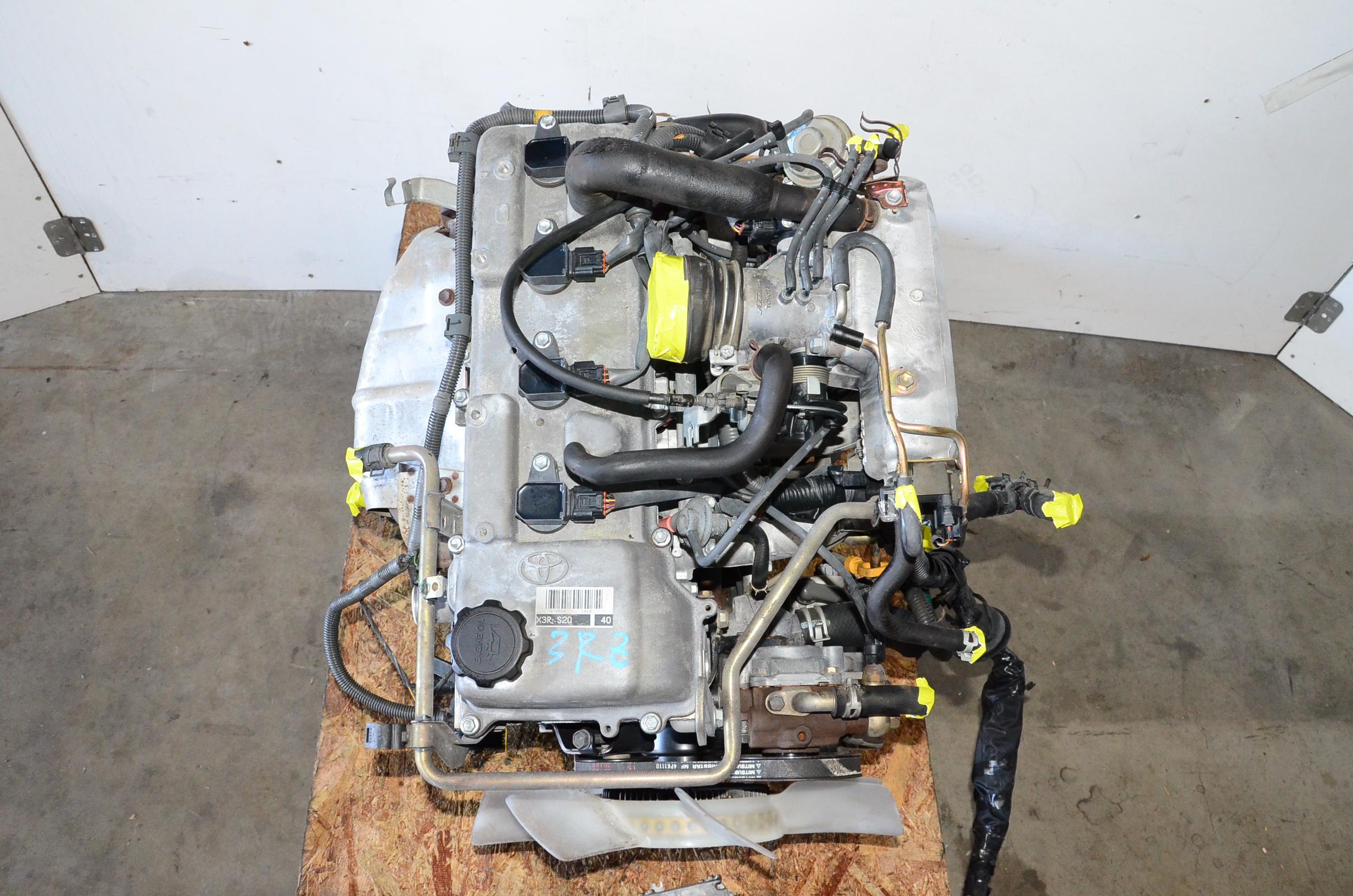

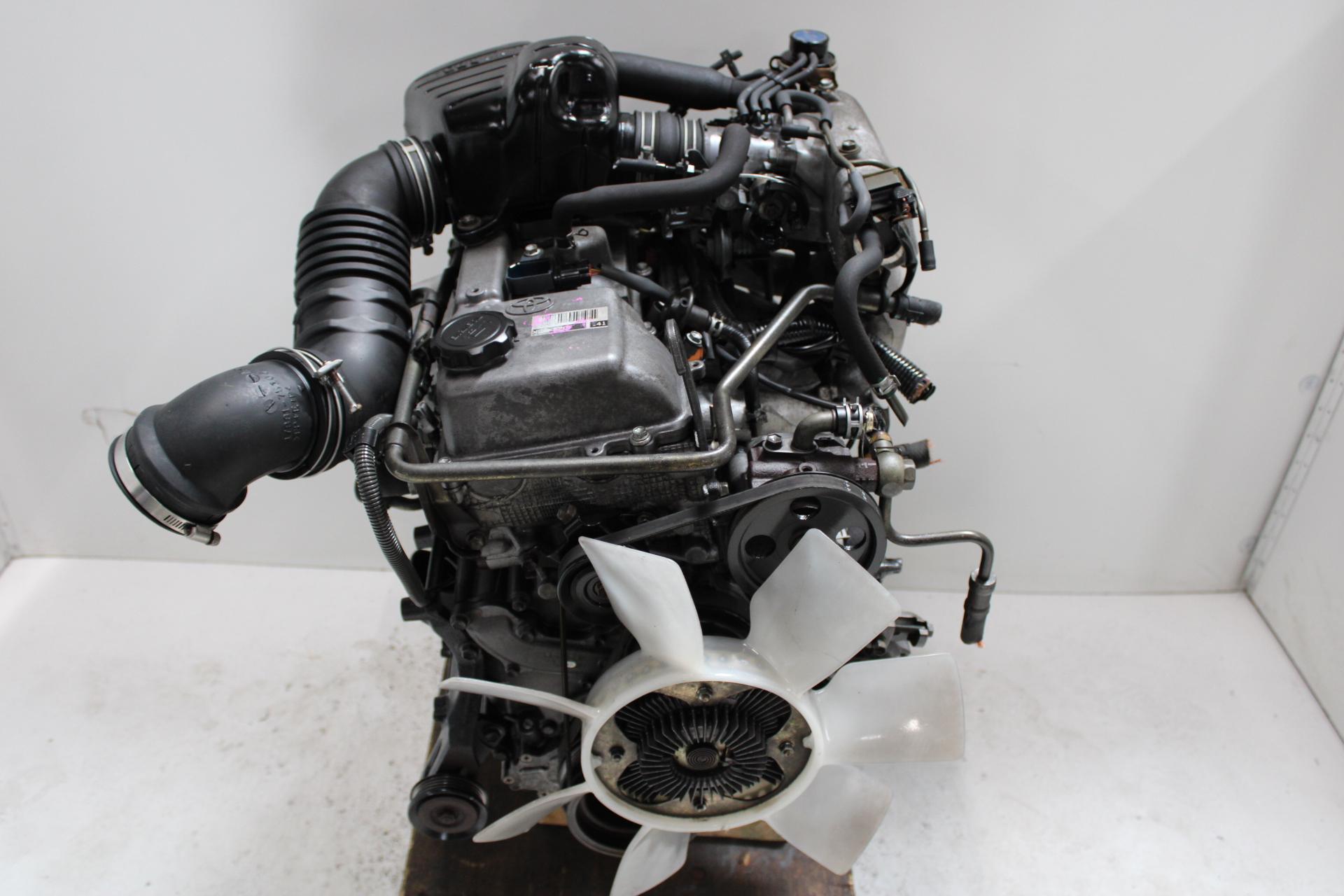

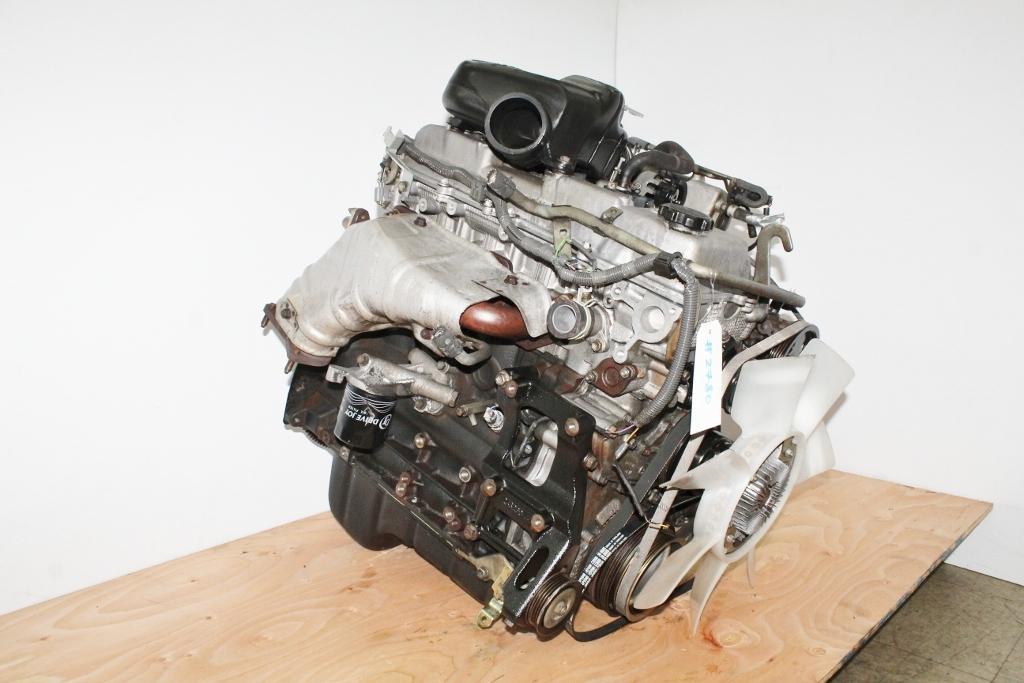

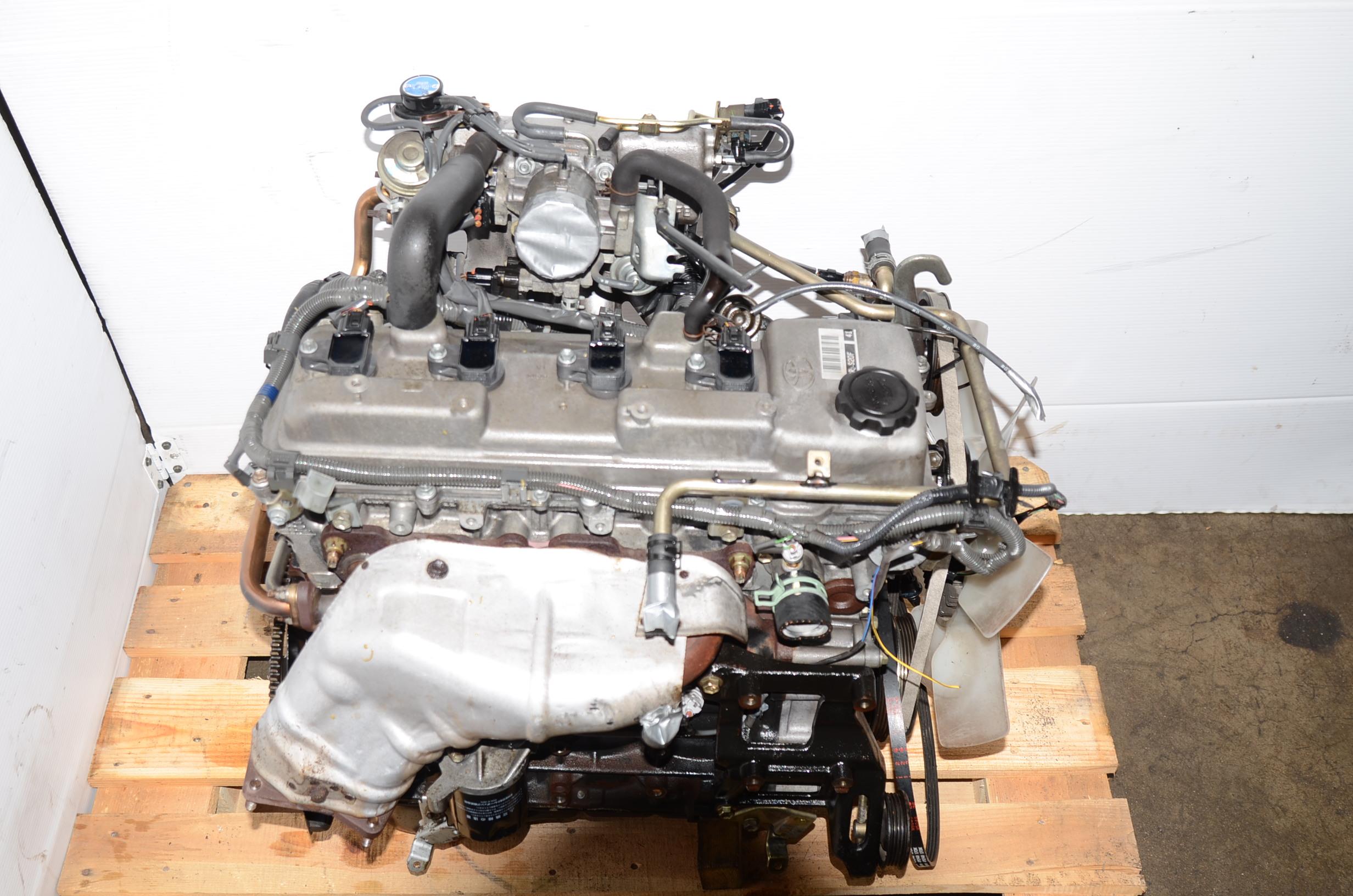

Toyota 3RZ-FE 2.7L
Engine code: 3RZ-FE
Family: RZ
Production: Approximately 1994–2004
Fuel: Petrol/Gasoline
Displacement: 2,693–2,694 cc
Capacity: 2.7 L
Cylinders: 4
Configuration: Inline-4
Bore: 95.0 mm
Stroke: 95.0 mm
Compression ratio: 9.5:1
Valves: 16
Valvetrain: DOHC
Aspiration: Naturally aspirated
Fuel system: Electronic multi-point fuel injection
VVT-i: No
Ignition: Electronic Spark Advance
Timing: Chain + gear drive
Balance shafts: Twin counter-rotating
Block: Cast iron
Cylinder head: Aluminum alloy
Crankshaft: Forged/fully balanced
Firing order: 1-3-4-2
Typical power: 108–112 kW / ~145–150 hp, depending on market
Typical torque: 217–240 Nm, depending on application
Peak power rpm: Approximately 4,800 rpm
Peak torque rpm: Approximately 4,000 rpm
Oil: Approximately 5.4 L, application-dependent
Common oil: 5W-30
Engine weight: Approximately 173 kg / 381 lb
Typical transmissions: 5-speed manual / 4-speed automatic
Main applications: Tacoma, Hilux, 4Runner, T100, Land Cruiser Prado, HiAce, Granvia and related Toyota models.
The Toyota 3RZ-FE 2.7L is a 2,693/2,694 cc naturally aspirated inline-four gasoline engine with a 95 × 95 mm bore/stroke, DOHC 16-valve aluminum head, cast-iron block, electronic multi-point fuel injection, 9.5:1 compression, timing-chain/gear drive and twin balance shafts. Depending on the vehicle and market, output is roughly 145–150 hp with around 235–240 Nm of torque.
