Briggs Stratton 126M02 1016 F1 Engine

Description

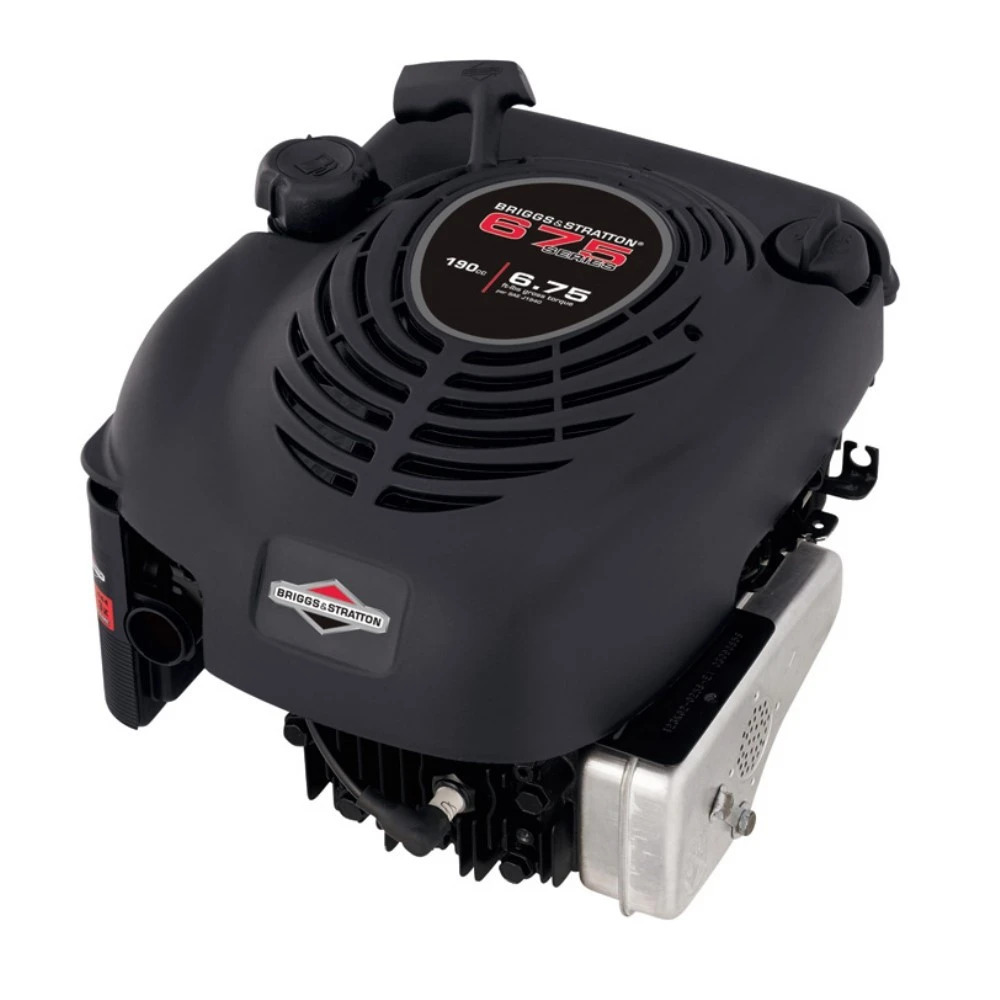

Briggs Stratton 126M02 1016-F1 190cc 6.75 Gross Torque Vertical Engine with a 7/8-inch x 2-7/16-inch Crankshaft, Image may not represent exact specs of engine model

Briggs Stratton 126M02 1016-F1 Engine Specifications
BRAND Briggs Stratton
MODEL NUMBER 126M02-1016-F1
WARRANTY 2 Year Consumer / 90 Day Commercial
SHIPPING WEIGHT 28
DISPLACEMENT 190cc
STARTER TYPE Recoil
CRANKSHAFT ORIENTATION Vertical
CRANKSHAFT TYPE Straight
FUEL SYSTEM Gasoline
GEAR REDUCTION No
CRANKSHAFT DIMENSIONS 7/8″ x 3-5/32″
CRANKSHAFT LENGTH 2.114
CRANKSHAFT END TAPPED SIZE 3/8 – 24
CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise
BEARING TYPE Plain
CYLINDERS 1
CYLINDER BORE TYPE Aluminum Alloy
AIR CLEANER TYPE Paper Element
FUEL TANK Yes
FUEL PUMP No
OIL COOLER No
OIL CAPACITY 20
LOW OIL ALERT No
IGNITION SYSTEM Electronic
CARBURETOR TYPE Float
CHOKE CONTROL None
MAX RPM 3100
CHARGING SYSTEM None
FLYWHEEL Light
NOTES Engine Notes:
PTO HEIGHT N/A
